Surge Wave Receiver

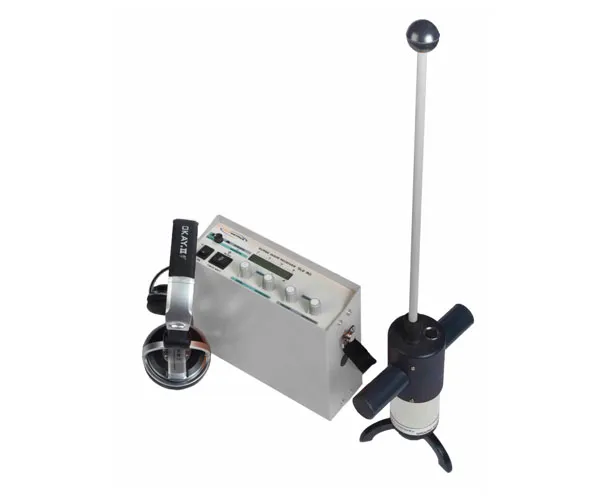

The Surge Wave Receiver (SWR) is an incredibly sensitive and dependable tool crafted to quickly and accurately identify faults in underground cables. It’s versatile enough to work with low, medium, and high-voltage power networks, utilizing both acoustic and magnetic detection techniques to ensure precise fault location along the cable path.
Featuring a dual LCD display, it shows real-time readings of magnetic field strength and acoustic signal levels, helping the operator to walk right over the cable. This makes it easier to find the exact fault point, even in noisy settings. Plus, the mute operation and acoustic window features cut out external noise, allowing for pinpoint accuracy without distractions.
- For pinpointing of cable faults by acoustics and magnetic method.
- Guides the operator to be walk on cable route while pinpointing the cable fault.
- Dual channels LCD display denoting the signal strength of magnetic and acoustic signals.
- Separate sensitivity and volume / level controls for magnetic and acoustic channels.
- Indication of battery condition.
- Back light facility for LCD display.
- Automatic low bat indication on LCD display.
- No external noise under mute operation.
- Ambient noise protected headphone.
- Perfect acoustic quality and noise immunity.
- Light weight, small and flexible receiver with high sensitive ground microphone.
- Rugged construction and easy to carry on site.
- Complete system is offered in a robust molded carrying case.
| Technical Specifications | |
| Working Channels | Acoustic and Magnetic |
| Acoustic Channels | Broad band Filter 70 – 3000 Hz |
| Magnetic Channels | 9820 Hz +10 Hz Bandwidth Filter |
| Indication | LCD bar-graph display to indicate the levels of acoustic and Magnetic channels. Battery check status Peak hold signal level bar on LCD |
| Time Lapse display | Not Available / Available |
| Gain | More than 96 dB for both magnetic and acoustic channels |
| Display Range | 0.5 |
| Input Impendence | 500 Ohm for ground microphone |
| Power Supply | 1.5 V X 8 AA size batteries |
| Charger | Optional |
| Operating Time | More than 15 Hrs. Continuous |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -5°C – 60°C |
| Dimensions | 240mm (L) x 80mm (H) x 190mm (D) / 248mm (L) x 80mm (H) x 190mm (D) |
| Weight | 1.5 kg Approx with Batteries |
