Soft Discharge Rod

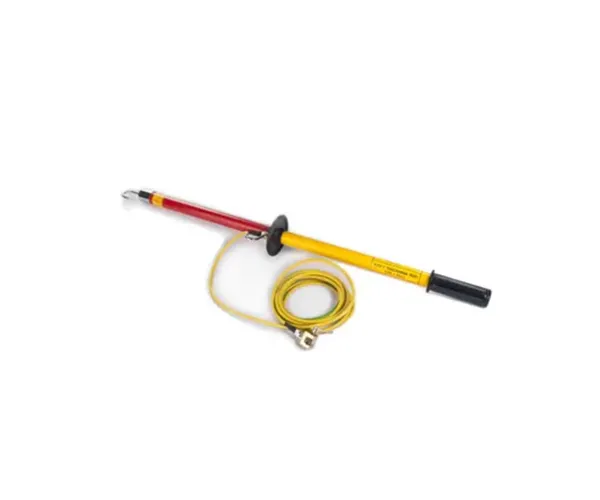

Soft Discharge Rod is an insulated stick, usually made of fiberglass tubes, Fiber glass tube manufactured from high quality epoxy resin. Products manufactured in automatic pultrusion plant hence strong sturdy. Super smooth glossy finish prevents moisture and excellent dielectric strength. The device is used by electric utility
electrician or workers when engaged on live-line working on energized high voltage electric power lines.
- Maximum discharge capacity up to 100 kV.
- Maximum discharge capacitance up to 20 µF.
- Damp discharge current limiting in built resistance.
- Robust fiber glass housing.
- Heavy duty hanging copper tip.
- Rubber protection slip resistance grip.
- Flexible copper cable with heavy duty brass clamp or crocodile clips.
- Cushioned soft caring case to withstand severe transport jerks and shocks.
| Technical Specifications | |||||
| Model | Damping Resistor | Max. Capacity discharge | Max. Working voltage kV) | Dimensions | Weight |
| SDR-1/11kV | 10 K Ohm | 6 MFD | 11 kV | 32mm Dia x 750mm Length | 1.65 kg |
| SDR-1/35kV | 10 K Ohm | 6 MFD | 35 kV | 32mm Dia x 960mm Length | 2.2 kg |
| SDR-1/70kV | 15 K Ohm | 10 MFD | 70 kV | 32mm Dia x 1200mm Length | 4.0 kg |
| SDR-1/100kV | 20 K Ohm | 10 MFD | 100 kV | 32mm Dia x 1800mm Length | 4.5 kg |
| General Specifications | |||||
| Clamping tip : J or Y type. | |||||
| Material :Pultrusion fiber glass. | |||||
| Operating Temperature : 0 deg C to 55 deg C. | |||||
| Storage Temperature : – 5 deg C to 60 deg C./td> | |||||
