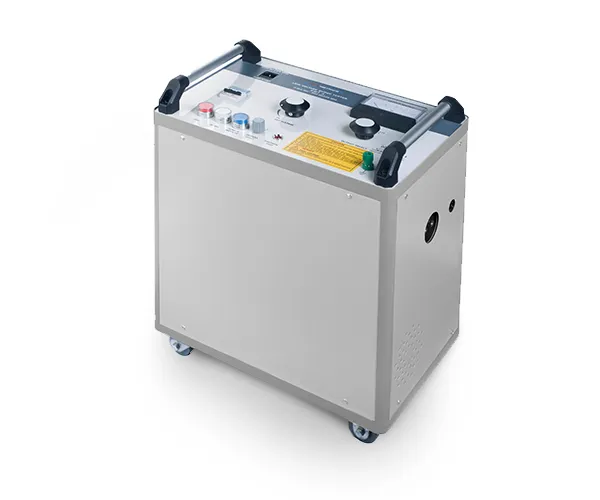

- Pin-point location of cable faults in Low voltage cables by acoustic method.
- Output voltage selectable ranges upto 6kV
- High energy of 500,750 Joules (Optional 1000Joules).
- Full energy delivering capacity at each select range.
- Single Impulse and 2, 4 seconds intervals Sequence.
- Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
- Power Supply 230V AC 10%, 50 Hz, Single phase.
- LT Network 1.1 kV.
| Technical Specifications | |||
| Specifications | SWT 4 | SWT 6 | SWT 6DC |
| Impulse | |||
| Voltage range in kV | 0-2/0- 4 | 0-3/0-6 | |
| Energy (at each range) | 500 | 750 | 1000 |
| in Joules | |||
| Single Mode | Yes | ||
| Selectable auto | 15/10 | ||
| frequency per minute | |||
| ARM module (Optional) | No | Yes | |
| DC test mode | No | Yes | |
| Voltage in kV | NA | 0-12 | |
| Current in mA | NA | 10 | |
| Burn Current in mA (Optional) 3kV | NA | 200mA | |
| 6kV | NA | 100mA | |
| General Parameters | |||
| Input Power Supply: | 230V AC ± 10% | ||
| Input Power Supply: | 230V AC ± 10% | ||
| Power Frequency | 50Hz or 60Hz ± 5% | ||
| Operating temperature | 0C to +55°C/td> | ||
| Degree of Protection | IP 21 | ||
