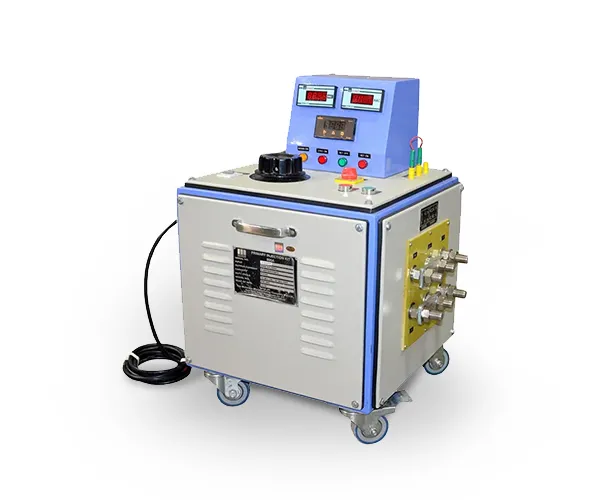

Primary Current Injection Kit
The MOT-PIK Series from Motwane is a reliable and high-performance choice for testing and commissioning protection systems in electrical substations. Designed with efficiency and user-friendliness in mind, this series boasts a robust output current of up to 3000 Amps and a burden capacity of 20kVA, making it perfect for heavy-duty and high-impedance testing tasks.
- Variable Output Current
- High VA burden to test high impedance objects
- Digital timer for measuring tripping time
- Zero Start Interlock for safety
- Auto Cut-Off upon Tripping Relay
- Current range ( Low – 50% & High – 100% of full range )
- CT sec current measurement (Optional)
- CT Polarity Detection (Optional)
- Wheel mounted for easy transportation
| Technical Specifications | |
| Model: | MOT-PIK200, MOT-PIK500, MOT-PIK800, MOT-PIK1000, MOT-PIK1500, MOT-PIK2000, MOT-PIK2500, MOT-PIK3000 |
| Output current: | 0-200A, 0-500A, 0-800A, 0-1000A, 0-1500A, 0-2000A, 0-2500A, 0-3000A |
| O/P Accuracy: | ±1.5% of full scale reading ± 2 digits |
| O/P Resolution: | 1A |
| OCV @ full Voltage: | 5V, 6V, 6.25V, 5V, 7V, 7V, 6V, 6.67V, |
| Burden: | 1KVA, 3KVA, 5KVA, 5KVA, 10KVA, 15KVA, 15KVA, 20KVA |
| Timer: | 0.0001 to 9999 sec Auto ranging, Digital timer |
| Timer Accuracy: | ±0.05% ±2 counts |
| Mains Power Supply: | 230Vac, 50/60Hz ±10 %, Single Phase |
| Operation Mode: | Manual Motorized |
| Duty Cycle: | 10 min On,20 min Off |
| Display: | LED Seven segment type Digital Display |
| Power | |
| Indication: | Bright LED for Test ON and Power ON operation |
| Protection & Safety: | Protected by MCB & Fuse |
| Zero start interlock | |
| Over current tripping | |
| Unit Combined control & loading unit Separate control & loading units | |
| Operating Temperature: | 0-55°C ,5-90% RH Non Condensing |
| Standard Output cables: | 50 mm² (2X5)meters 120 mm² (2X5)meters 180 mm² (2X5)meters 240 mm² (2X5)meters 400 mm² (2X7)meters 480 mm² (2X10)meters 600 mm² (2X10)meters 700 mm² (2X10)meters |
| *We also Provide customized Primary Injection kit as per requirement | |
| Standard Accessories | |
| Test Lead set : | pair of cotton braided copper |
| Cables with lugs at both end | |
| Mains Power Supply Cord | |
| Spare Fuse | |
| Short link | |
| Instruction manual | |
| Calibration certificate | |
| Warranty certificate | |
| Optional Accessories | |
| C – clamp | |
| Interconnecting cables | |
| Optional Features | |
| Measurement of CT sec current & Polarity | |
| Auxiliary variable AC/DC voltage 0-250V | |
| Measurement of Open Circuit Voltage of o/p current terminals | |
| Warranty: Standard one year warranty against any manufacturing defects. | |
| Ordering Information | |
| MOT-PIK200/1 Primary Current Injection Kit : | 200A with 1kVA Burden |
| MOT-PIK500/3 Primary Current Injection Kit : | 500A with 3kVA Burden |
| MOT-PIK800/5 Primary Current Injection Kit : | 800A with 5kVA Burden |
| MOT-PIK1000/5 Primary Current Injection Kit : | 1000A with 5kVA Burden |
| MOT-PIK1500/10 Primary Current Injection Kit : | 1500A with 10kVA Burden |
| MOT-PIK2000/15 Primary Current Injection Kit : | 2000A with 15kVA Burden |
| MOT-PIK2500/15 Primary Current Injection Kit : | 2000A with 15kVA Burden |
| MOT-PIK3000/20 Primary Current Injection Kit : | 3000A with 20kVA Burden |
| Notes | |
| 1.The Instrument is accompanied with Test & calibration sheet. | |
| 2.Test Facilities can be provided at the factory with the available test set-ups only. | |
| 3. The Company’s policy is continuous improvement of its products. We therefore reserve the Right of any deviation from illustration or specifications without notice. | |
| 4.Stated accuracies are valid from 10% of the range to 95% of the range. | |
| 5. Accuracy Specified for temperature range of 25°C ± 5°C & 55% RH ±10%. | |
