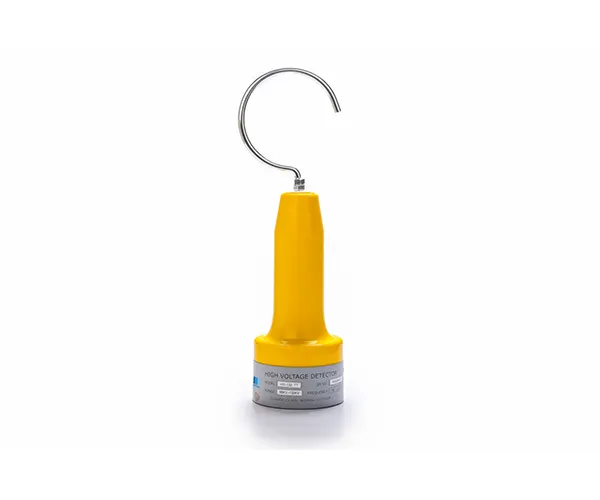

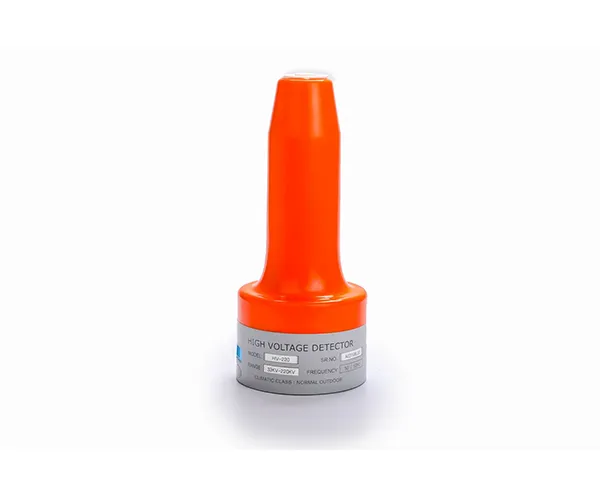

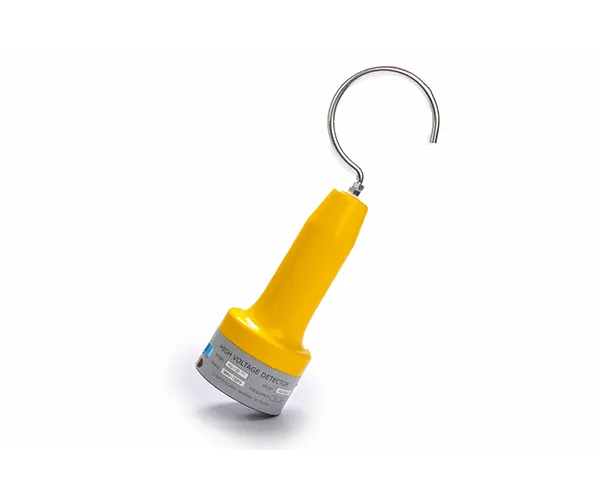

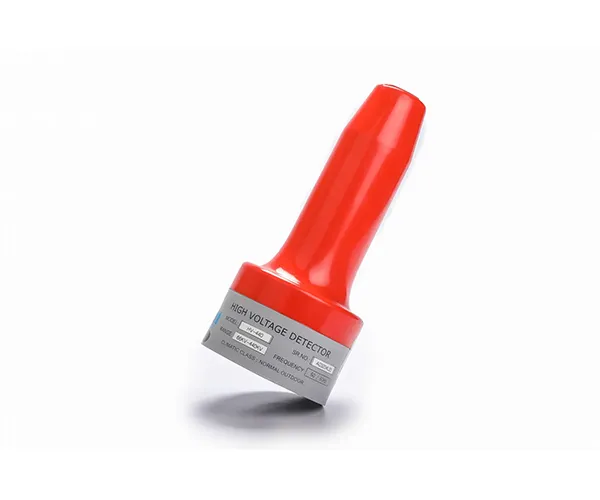

High Voltage Detector
Motwane’s HV Detector Series is all about keeping users safe while making things easy to use in a compact and reliable electrical safety device. Perfectly suited for medium to extra-high voltage settings, these detectors come equipped with smart LED layouts, built-in audible alarms, and cutting-edge self-test features to ensure they deliver precise and trustworthy performance.
- Contact / Non-contact type Detectors.
- Type tested at CPRI/ERDA
- Available in FRP Telescopic Rod.
- Colour Code models for different voltage levels.
- Indicates presence of High Voltage by Audio
- Annunciations as well as Visual Indications.
- Bright high intensity red LED’s provide clear visual Bullet even in unfavourable daylight conditions.
- A Buzzer produces a loud beep which is audible even in noisy backgrounds.
- Supplied as a complete kit with HV Detector, Telescopic Fibre Glass Insulation stick and ergonomically designed sturdy carry bag.

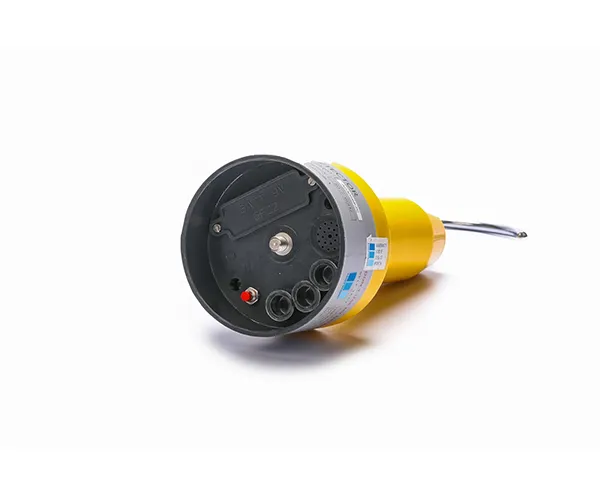

- Self test button to test battery and proper functioning of HV detector.
- Powered by a single 9V battery type (6F22), easily replaceable on field.
| Technical Specifications | |||||
| Model | HV50P | HV50 | HV132 | HV220 | HV440 |
| Voltage Range | 230V – 33kV | 3.3kV – 50kV | 11kV – 132kV | 33kV – 220kV | 66kV – 440kV |
| Type | Non Contact | Non Contact | Contact/Non Contact | Contact/Non Contact | Contact/Non Contact |
| Sensing distance | 1mtr – 3mtr – 5mtr | 1mtr – 3mtr – 5mtr | 1mtr – 3mtr – 5mtr | 1mtr – 3mtr – 5mtr | 1mtr – 3mtr – 5mtr |
