AC-DC Hipot Test Set

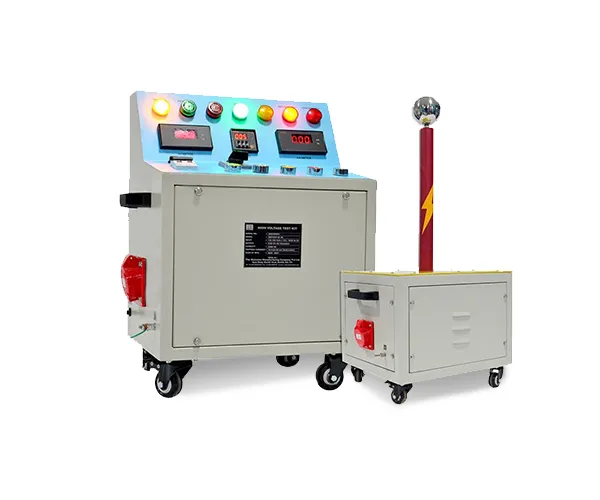

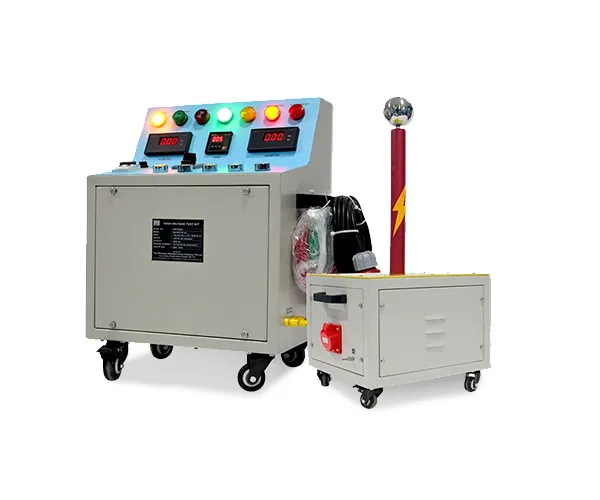

The Motwane HVT Series is crafted to assess how well electrical insulation can handle overvoltage transients. With a broad spectrum of test voltages, this series simplifies your testing needs by combining AC, DC, and AC+DC testing into one convenient system. Designed for reliability, durability, and user-friendliness, the HVT Series is the perfect solution for essential high-voltage testing tasks.
- Variable Output Voltage AC/DC/AC+DC
- Selectable Trip Current
- Zero Start Interlock
- Timer to set duration of test
- Audio/Visual Indications
- Overload Protection
- High Leakage Current Range
- Supply Fault / Earth Open Interlocking Door / Cabin Door Interlock
- Wheel mounted for easy transportation
| Technical Specifications | |
| Model | MOT-HVT5 MOT-HVT10 MOT-HVT15 MOT-HVT20 MOT-HVT30 MOT-HVT40 MOT-HVT50 MOT-HVT70 MOT- HVT 100 |
| Output Voltage | 5KV 10KV 15KV 20KV 30KV 40KV 50KV 70KV 100KV |
| Tripping current Options | 1) 50mA or 2) 100mA, Selectable at (25%-50%-100%) of full range |
| Burden at 50mA | 0.25KVA 0.5KVA 0.75KVA 1KVA 1.5KVA 2KVA 2.5KVA 3.5KVA |
| Burden at 100mA | 0.5KVA 1KVA 1.5KVA 2KVA 3KVA 4KVA 5KVA 7KVA |
| Type of Voltage | AC/DC/AC+DC |
| Display | (V/I/T) Digital Meter |
| Voltage Meter | 0.-5KV 0.-10KV 0-15KV 0-20KV 0-30KV 0-40KV 0-50KV 0-70KV 0-100KV |
| Voltage Accuracy | ±2% of full scale reading ±2 digits |
| Voltage Resolution | 0.1KV |
| Current Accuracy | ±2% of full scale reading ±2 digits |
| Mains Supply | 230 V 50/60 Hz ±10%, 1 Phase AC |
| Duty Cycle | 15 min On, 10min Off |
| Timer | 0-999 seconds Digital Timer |
| Time Accuracy | ±0.05% of full scale reading |
| Operation Mode | Manual Motorized |
| Colling Type | Air cooled |
| Indication | Bright LED for Power ON & Test ON |
| Protection and Safety | Protected by MCB |
| Fuse | Zero start interlock |
| Earth open / supply fault interlock, Door/cabin interlock | |
| Operating Temperature | 0-55°C, 5-90% RH Non Condensing |
| *We also provide customized High voltage test set as per requirement | |
| Standard Accessories | |
| Non shielded HV Cable | |
| Grounding cable | |
| Spare fuse | |
| Instruction manual | |
| Warranty certificate | |
| Calibration certificate | |
| Optional Accessories | |
| Interconnecting Cable | |
| Discharge Rod | |
| Warranty: Standard one year warranty against any manufacturing defects | |
| Model Products Detail | |
| MOT-HVT5 5KV High Voltage Tester | |
| MOT-HVT10 10KV High Voltage Tester | |
| MOT-HVT15 15KV High Voltage Tester | |
| MOT-HVT20 20KV High Voltage Tester | |
| MOT-HVT30 30KV High Voltage Tester | |
| MOT-HVT40 40KV High Voltage Tester | |
| MOT-HVT50 50KV High Voltage Tester | |
| MOT-HVT70 70KV High Voltage Tester | |
| MOT-HVT 100 100KV High Voltage Tester | |
| Note: while ordering need to mention 1) Type of voltage : AC, DC or AC-DC 2) Tripping Current : 50mA or 100mA | |
