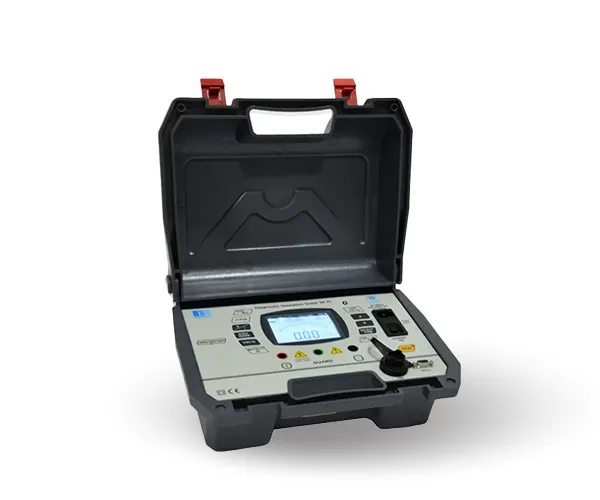

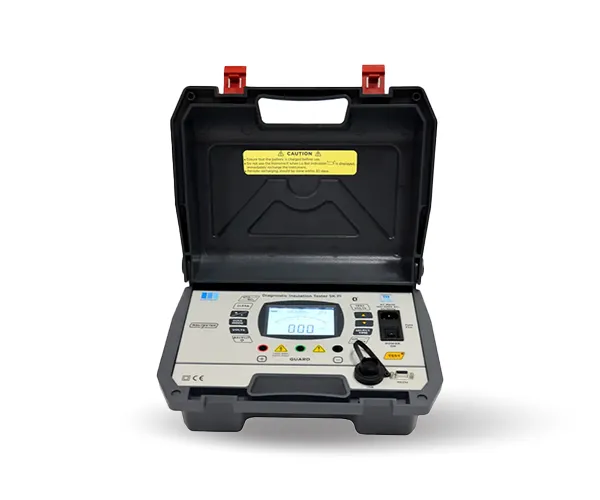

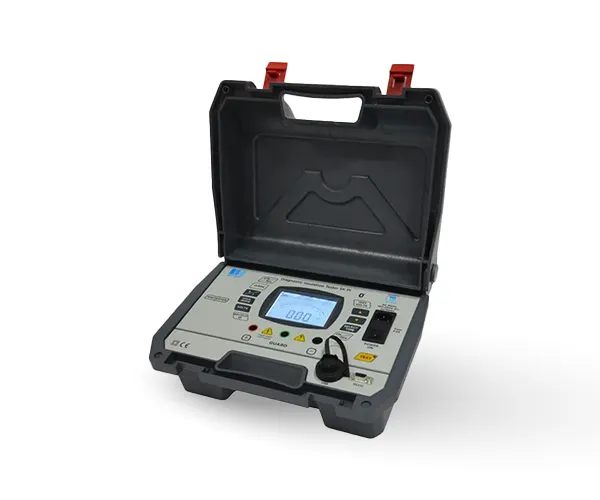

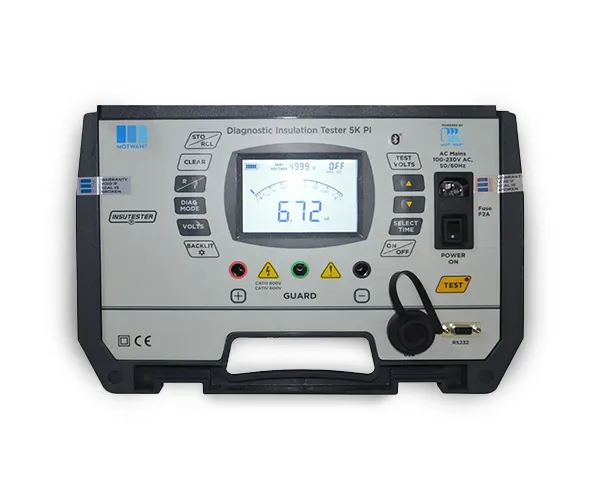

5kV Diagnostic Insulation Tester
The 5K PI Insulation Diagnostic Tester is a state-of-the-art tool crafted to provide dependable diagnostic testing for high-voltage equipment like Transformers, Cables, Bushings, Insulators, Switchgears, Lightning Arresters/Surge Arrestors, and Rotating Machines.
Built with precision and durability in mind, the 5K PI features a lightweight, compact design paired with cutting-edge technology to guarantee reliable performance, even in tough conditions. Developed in our advanced R&D lab and certified to meet the necessary IS/IEC standards, it’s the perfect choice for both fieldwork and outdoor use.
- Alarm Mode with Min-Max Settings & Pass Fail Indication
- CAT IV 600V, IP 54, Complies with latest IEC/IS Standards
- Operation from an AC source when the battery is flat
- Digital filter is designed with three different levels F-1, F-2, F-3 useful while testing insulation in heavy noisy environment.
- For 5K PI 6mA, Interference Rejection: 1mA RMS per 250V test voltage up to a max. of 8mA
- Designed for routine insulation resistance testing and diagnostic testing like PI, DD, DAR, SV & BDV test of high voltage electric apparatus like transformers, generators, motors, cables, bushings, LAs, switchgear, etc. and is temperature independent.
| Model Name | 5K PI 3mA | 5K PI 5mA | 5K PI 6mA | |
|---|---|---|---|---|
| Test Sepcifications | ||||
| Diagnostic Modes | IR, PI, DD, DAR, SV & BDV | |||
| Test Voltage | ||||
| Programmable Test Voltage | 250V, 500V, 1000V, 2500V, 5000V | |||
| Lock Test Voltage | 250V to 5kV in 50V steps | |||
| Voltage Accuracy | ± 5% | |||
| Resistance Range | ||||
| Analog & Digital Display | 1KΩ to 10TΩ | 1KΩ to 50TΩ | ||
| Accuracy | ±(5% of reading + 5 digits) upto 1 TΩ | ±(5% of reading + 5 digits) upto 1 TΩ | ||
| ±(10% of reading + 5 digits), for 1 TΩ to 10 TΩ | ±(10% of reading + 5 digits), for 1 TΩ to 50 TΩ | |||
| Guard Resistance | 300kΩ + 10% | |||
| Indication | Audio-visual warnings available | |||
| Short Circuit /Charge Current | ||||
| Short Circuit Current | Up to 3mA | Up to 5mA | Up to 6mA | |
| Current Range | Up to 3mA | Up to 5mA | Up to 6mA | |
| Accuracy | ≤ 3mA + 0.5 mA | ≤ 5mA + 0.5 mA | ≤ 6mA + 0.5 mA | |
| AC/DC Voltage | ||||
| Voltmeter Range | 0 ~ 600 AC/DC | |||
| Voltmeter Accuracy | ±(5% of reading + 5 digits); input resistance: 100MΩ Approx | |||
| Capacitance Measurement | ||||
| Capacitor Charging Time | ≤ 5 sec per μF | |||
| Capacitor Discharge Time | ≤ 5 sec per μF | |||
| Capacitance Range | 1nF to 50μF; Measuring range C: 50 μF* | |||
| Capacitance Measurement Accuracy | ±(10% of readings + 5 nF) | |||
| Interference Rejection | ||||
| 1mA RMS per 250V test voltage up to a max. of 4mA | 1mA RMS per 250V test voltage up to a max. of 8mA | |||
| Timer | ||||
| Programmable timer from 0 sec to 99 minutes | ||||
| Memory | ||||
| Internal Memory storage of 1000 readings | ||||
| Interface | ||||
| Bluetooth Communication | Galvanically isolated RS232 and USB ports; remote operation via PC using either RS232 or USB cable |
|||
| Power Supply | ||||
| Mains Input | Voltage 100-230V, Frequency 50/60Hz | |||
| Battery Type | Rechargeable Battery 14.8V, 2600mAh 4 x Replaceable Battery Li-ion 3.7v 3200mAh, INR18650MH1 |
|||
| Battery Life | Approx. 5 hours of continuous testing at 5KV on 250 MΩ load | |||
| Battery Charging Time | 3 hours approx. (95% Charged) | |||
| Auto Power Off | Instrument turns off after 5 minutes of non-use to conserve battery life | |||
| Environmental Condition | ||||
| Operating Temperature Range | 0°C to 55°C | |||
| Storage Temperature Range | -20°C to + 70°C | |||
| Humidity | < 95% RH Non-Condensing | |||
| Safety in accordance with EN 61010-1 |
||||
| Safety of test lead in accordance with EN 61010-031 | ||||
| Measurement CAT III 600V / CAT IV 600V | ||||
| CE Certified | ||||
| Ingress Protection IP 65 | ||||
| Physical Specifications | ||||
| Dimensions | 190mm X 285mm X 365mm (Approx.) (H x W x L) | |||
| Weight | 4 Kg (approx) (Without Accessories) 9 Kg (approx.) (With Accessories) | |||
Related Products

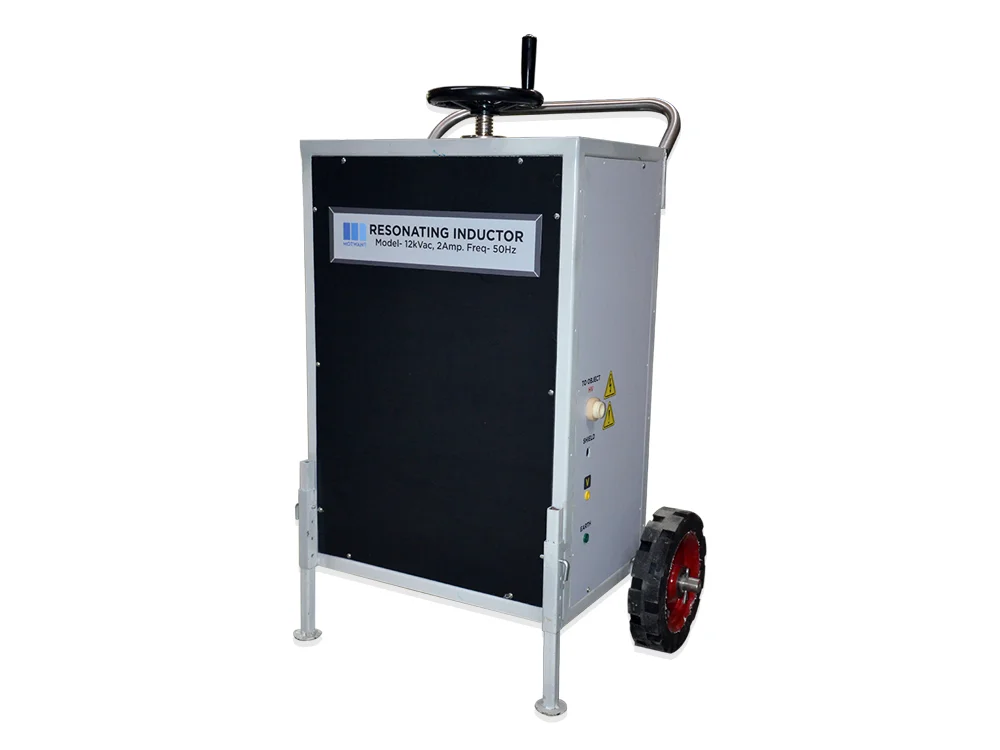

The Resonating Inductor is a high-efficiency accessory that boosts the performance of the MTAND 12-kV Automated Insulation Test Set by expanding its capacity for capacitance and dissipation factor measurements. It works by offsetting reactive power, enabling accurate and consistent testing of large capacitive components such as power cables, high-capacity motors, and generators.

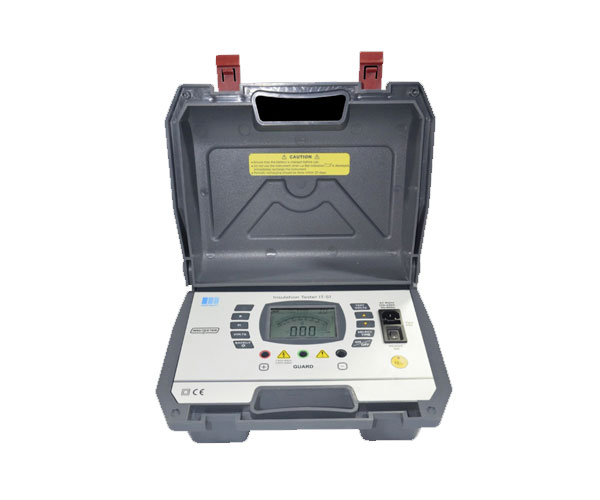

The Motwane IT-51 microprocessor-based digital insulation tester is a cutting-edge tool that makes diagnosing high-voltage equipment a breeze. This microprocessor-controlled device is perfect for testing a variety of electrical gear, from transformers and switchgear to motors, generators, cables, and substation components.
With its dual-display system featuring both digital and analog readouts, you can enjoy improved monitoring and accurate measurements. Plus, the IT-51 takes care of Insulation Resistance (IR) and Polarization Index (PI) tests automatically, ensuring you get reliable and consistent results every time.

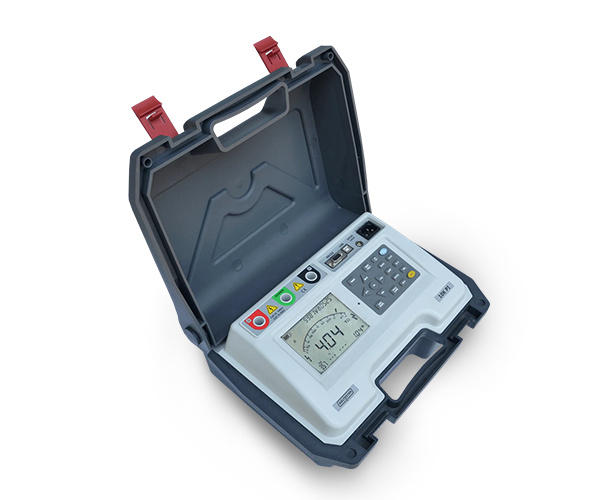

10K PI is an Insulation Diagnostic Tester having test voltage range up to 10KV, designed & developed indigenously at the state of the art R&D laboratory to conduct automatic insulation tests on high voltage equipment’s like Transformers, Cables, Bushings, Switchgears & Rotating Machines.
10K PI comes in two ranges of short circuit current of 3mA and 6mA. 10K PI is a microprocessor based instrument deploying the latest technology & very high speed data sampling to give correct, repetitive readings & quality performance under harsh electrical conditions. It has a wide insulation resistance range up to 50TΩ.

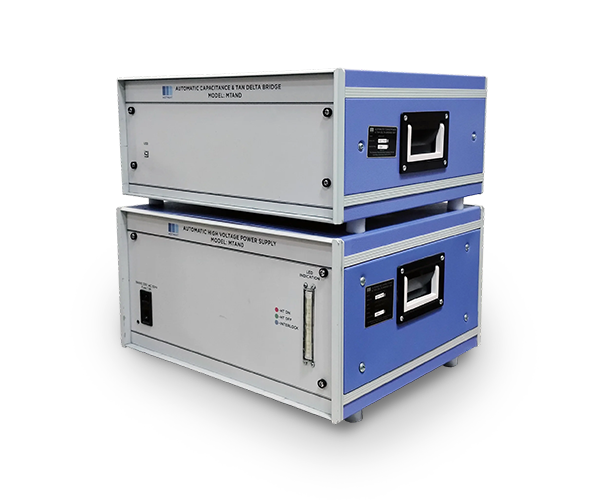

This set includes the Bridge Model MTAND and the HV Supply Model HLS12A, along with all the necessary cables, creating a laptop-based system that runs on Visual C++ Windows software. It’s designed to be incredibly versatile and user-friendly, making it perfect for precise measurements. With a laptop and a Windows interface, you can easily store, access, and analyze data right on-site.
The system automatically adjusts the Tan Delta values of the tested object for temperature variations, following IEC standards. You can view the results on a vibrant color display, complete with graphical plots for:
– Tan Delta vs. Voltage
– Tan Delta vs. Time

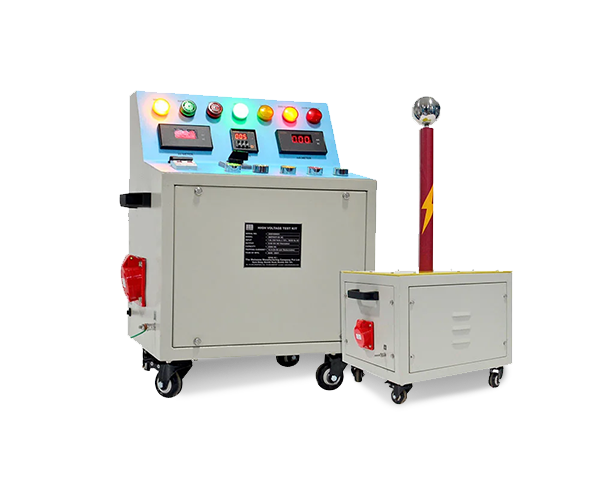

The Motwane HVT Series is crafted to assess how well electrical insulation can handle overvoltage transients. With a broad spectrum of test voltages, this series simplifies your testing needs by combining AC, DC, and AC+DC testing into one convenient system. Designed for reliability, durability, and user-friendliness, the HVT Series is the perfect solution for essential high-voltage testing tasks.
