10kV Diagnostic Insulation Tester

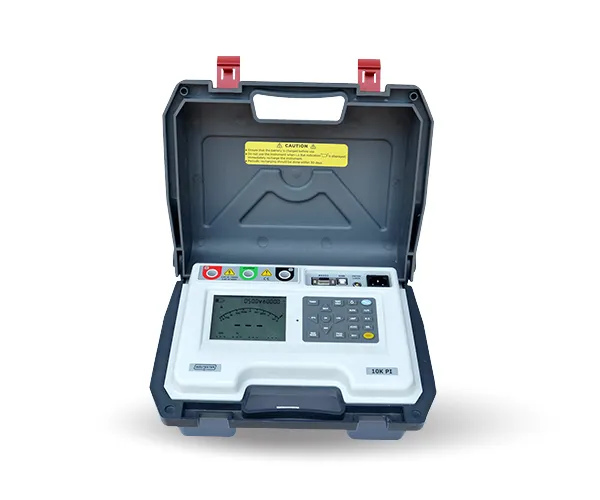

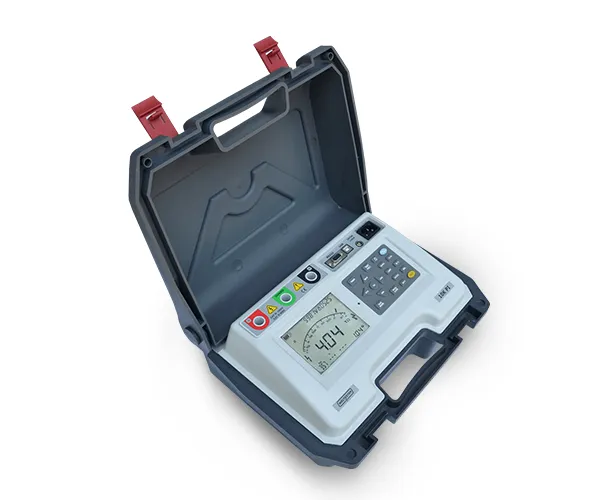

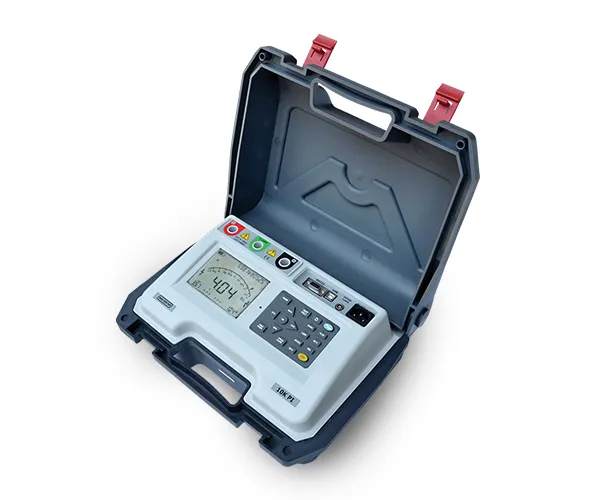

10K PI is an Insulation Diagnostic Tester having test voltage range up to 10KV, designed & developed indigenously at the state of the art R&D laboratory to conduct automatic insulation tests on high voltage equipment’s like Transformers, Cables, Bushings, Switchgears & Rotating Machines.
10K PI comes in two ranges of short circuit current of 3mA and 6mA. 10K PI is a microprocessor based instrument deploying the latest technology & very high speed data sampling to give correct, repetitive readings & quality performance under harsh electrical conditions. It has a wide insulation resistance range up to 50TΩ.
- There manually selectable convince DC ranges for application
- Cable and cable sheath testing up to 12 kV between metallic sheath / armoured and mass of earth.
- Automatic sheath fault pre-location with high precision measuring bridge method.
- Cable sheath fault pin pointing by pool of potential method.
- Automatic discharging facility of cable under test, in case of power failure or after switching off.
- Conversion of high-resistance faults in low-voltage cables.
- Burn mode for conditioning the sheath fault.
- It is extremely user friendly in obtaining the fault distance; it uses a micro-controller based fault distance calculator that enables the operator to get the pre-location measurements with precise accuracy.
- Continues operation for extended period in case of pin-point difficult sheath faults.
- Rugged construction and easy to carry on site.
| Model Name | 10K PI 3mA | 10K PI 6mA |
|---|---|---|
| Test Sepcifications | ||
| Diagnostic Modes | IR, PI, DAR, DD, SV, BDV, Burn | |
| Test Voltage | ||
| Programmable Test Voltage | 250V, 500V, 1000V, 2500V, 5000V, 7500V, 10000V | |
| Lock Test Voltage | 250 – 1000V adjustable in steps of 10V 1000 – 10000V adjustable in steps of 25V | |
| Voltage Accuracy | ± (5% of reading + 5 digits) | |
| Resistance Range | ||
| Resistance Range (Analog Display) | 10KΩ – 10TΩ | 10KΩ – 10TΩ |
| Resistance Range (Digital Display) | 10KΩ – 20TΩ | 10KΩ – 50TΩ |
| Accuracy | 1 MΩ to 1 TΩ ± (5% + 5 digits) 1 TΩ to 10 TΩ ± (10% + 5 digits) 10 TΩ to 20 TΩ ± (20% + 7 digits) | 1 MΩ to 1 TΩ ± (5% + 5 digits) 1 TΩ to 10 TΩ ± (10% + 5 digits) 10 TΩ to 50 TΩ ± (20% + 7 digits) |
| Guard Resistance | 300 kΩ ± 10% | |
| Short Circuit/Charge Current | ||
| Short Circuit Current | Up to 3mA | Up to 6mA |
| Accuracy at 25°C at 10KV | 3mA ± 0.7mA | 6mA ± 0.7mA |
| AC/DC Voltage | ||
| Voltmeter Range | 0 ~ 600V AC/DC | |
| Voltmeter Accuracy | ± (8% + 5 digits), input resistance: 250MΩ Approx | |
| Capacitance Measurement | ||
| Capacitor Discharge Time | ≤ 5 sec per μF | |
| Capacitance Range | 1nF to 50μF | |
| Capacitance Measurement Accuracy | ± (5% of readings + 5 nF) | |
| Model Name | 10K PI 3mA | 10K PI 6mA |
|---|---|---|
| Interference Rejection | ||
| 1mA RMS per 250V test voltage up to a max. of 4mA | 1mA RMS per 250V test voltage up to a max. of 8mA | |
| Timer | ||
| Programmable timer from 0 sec to 99 minutes | ||
| Memory | ||
| Internal data storage of 1000 readings | ||
| Interface | ||
| Galvanically isolated RS232 and USB ports; remote operation via PC using either RS232 or USB cable | ||
| Data Handling & Analysis Software | ||
| Operated on XP/Windows7/Windows8/Windows10/Windows11 | ||
| Two way communication for remote operation | ||
| Report generation along with the graphical representation for Data Trending Analysis | ||
| Power Supply | ||
| Mains Input Voltage | 115V/230V RMS, Frequency 50/60 Hz | 85V/265V RMS, Frequency 50/60Hz ±10% |
| Battery Type | Battery Pack, Rechargeable 14.8V, 5200mAh, Li Ion, Type 18650 | |
| Battery Life | 8 hours continuous testing at 10kV with a 250 MΩ load (approx) | |
| Battery Charge Time | Approx. 8 hours (95% charged) | |
| Auto Power Off | Instrument turns off after 10 minutes of non use to conserve battery life | |
