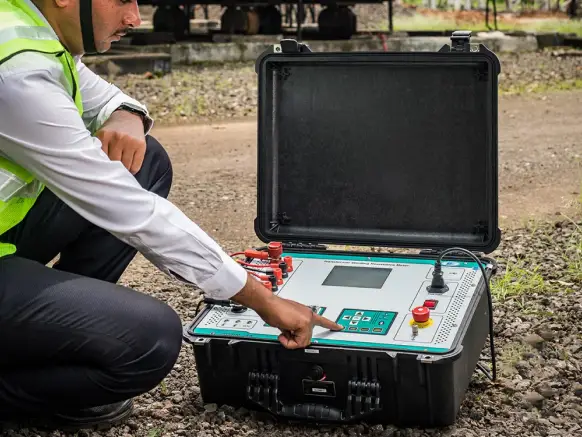

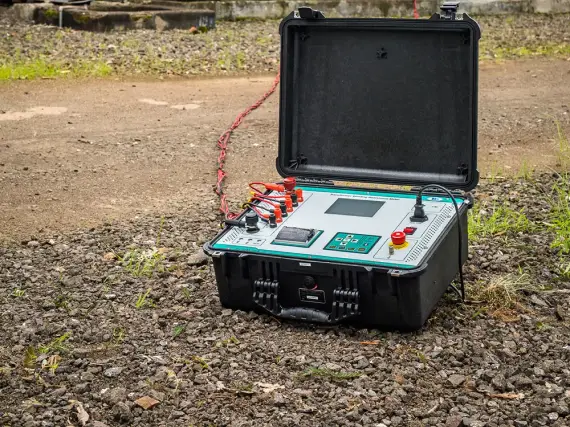

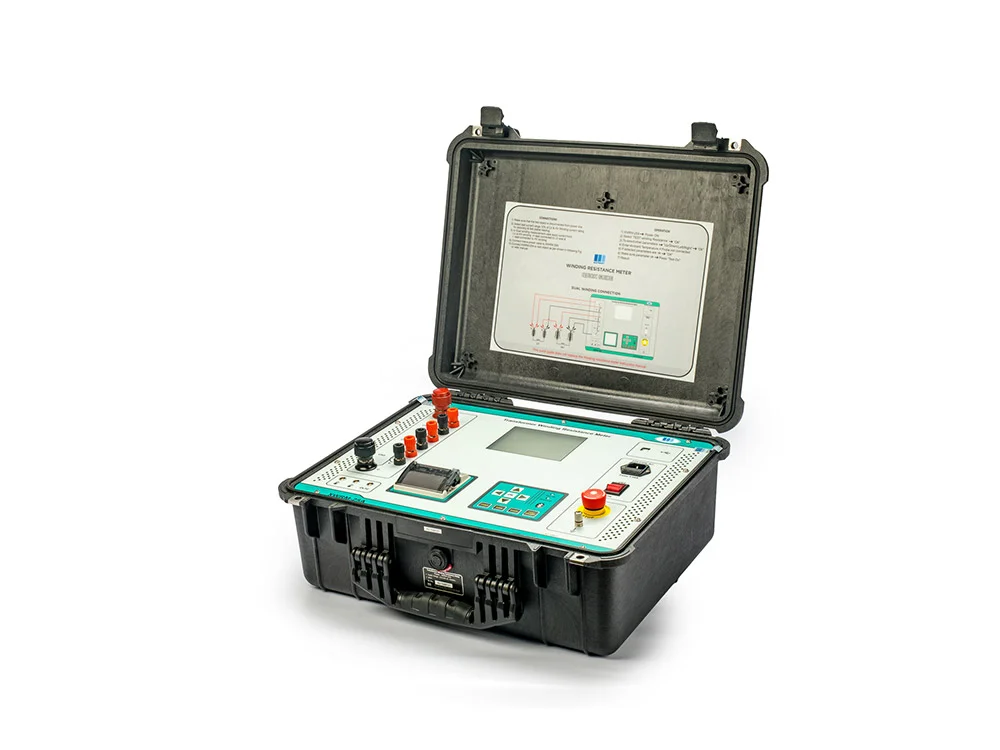

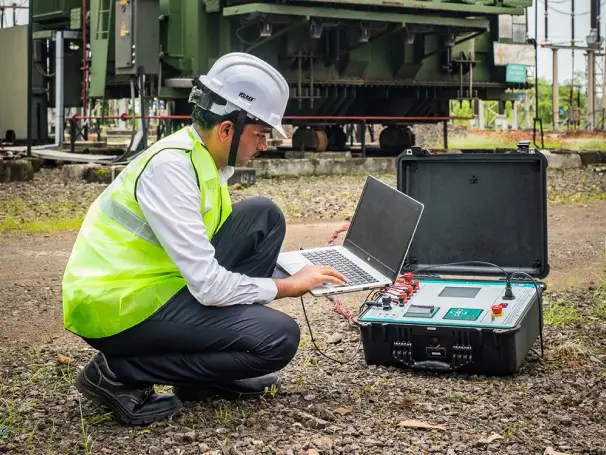

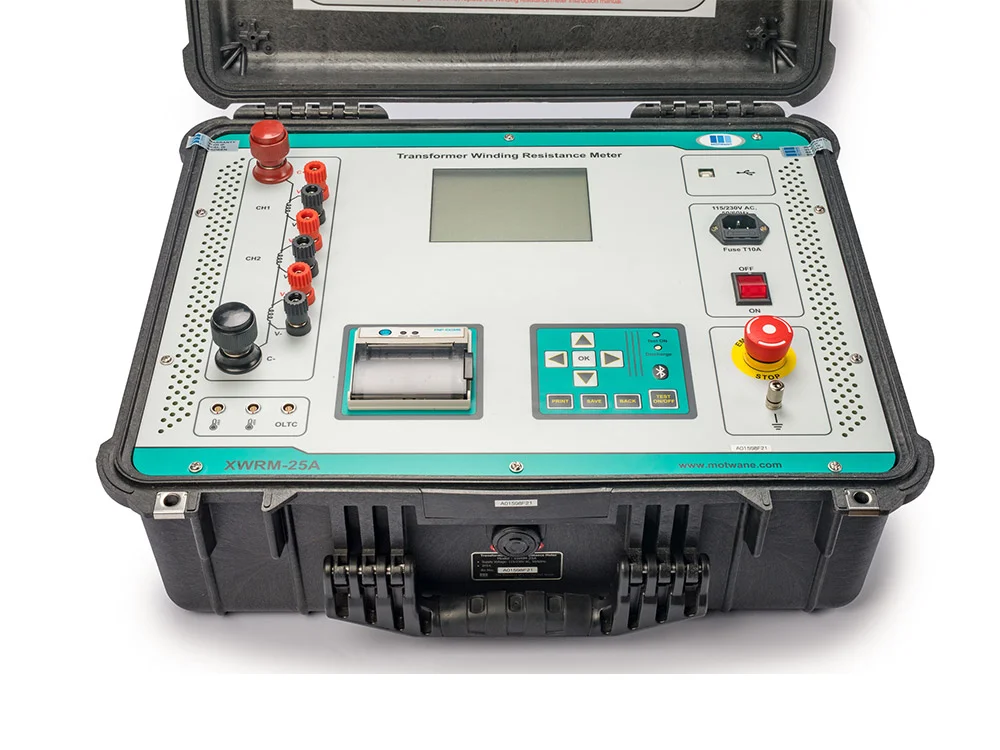

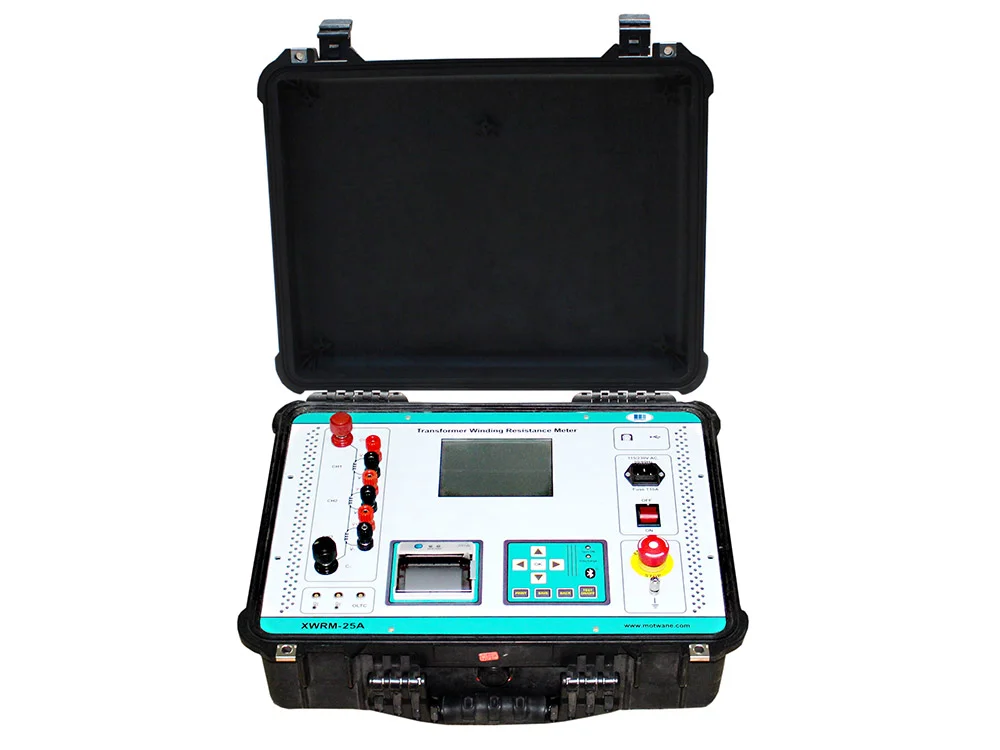

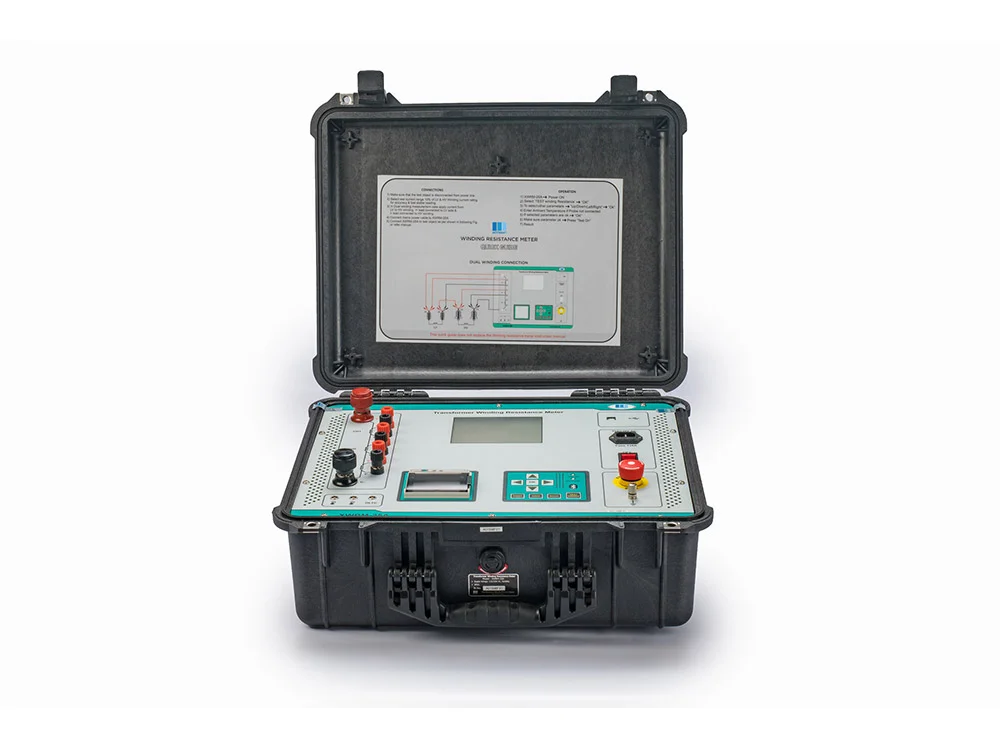

- Direct 3-channel digital reading allows for testing of windings at a time.
- Very fast discharge time.
- High-contrast, large alphanumeric displays can be seen in bright sunlight.
- User-selectable maximum current range ensures protection of small transformers.
- Built-in demagnetization circuitry allows the operator to de-magnetize the transformer core upon completion of resistance testing, or as a stand-alone feature before SFRA testing or when the transformer is put back in service.
- The XWRM allows for test of transformers with on-load tap-changers and provides a “break-before-make” indicator, in the event of any discontinuity.
- For those users who choose to create an external interlock safety perimeter, a safety Emergency Stop is provided.Remote trigger switch is also provided for testing transformers with tap-changers.
- Internal flash memory allows for mass storage of dataset records, for later recall and analysis
| Technical Specifications | |||||||
| Power Supply | |||||||
| 115/230V AC, 50/60 Hz | |||||||
| Test Current | |||||||
| 25A, 10A, 5A, 1A, 100mA & 10mA | |||||||
| Open-Circuit Test Voltage: 60 VDC | |||||||
| Burden: 1500W | |||||||
| Accuracy | |||||||
| + ( 0.25 % of rdg + 0.25 % of FSD) | |||||||
| Resistance Measurement Range | |||||||
| Range Accuracy +(0.25% of FSD + 5.0μΩ ) for 0.1μΩ to 199.9 μΩ only | |||||||
| Test Current | Range (Ω) | Resolution (Ω) | Maximum Display (Ω) | ||||
| 25A | 10A | 1A | 100mA | 10mA | |||
| √ | 200uΩ | 0.01uΩ | 199.99uΩ | ||||
| √ | √ | 2mΩ | 0.1uΩ | 1.9999mΩ | |||
| √ | √ | √ | 20mΩ | 1uΩ | 19.999mΩ | ||
| √ | √ | √ | √ | √ | 200mΩ | 10uΩ | 199.99mΩ |
| √ | √ | √ | √ | 2Ω | 0.1mΩ | 1.9999Ω | |
| √ | √ | √ | 20Ω | 1mΩ | 19.999Ω | ||
| √ | √ | 200Ω | 10mΩ | 199.99Ω | |||
| √ | 2000Ω | 0.1Ω | 1999.9 Ω | ||||
| Test Current | Range (Ω) | Resolution (Ω) | Maximum Display (Ω) | |
| 5A | 4 mΩ | 0.1 µΩ | 4.0000 mΩ | |
| 40 mΩ | 1 µΩ | 40.000 mΩ | ||
| 400 mΩ | 10 µΩ | 400.00 mΩ | ||
| 4 Ω | 0.1mΩ | 4.0000 Ω | ||
| General | ||||
| Principle: 4 wire measurement | ||||
| Measurement Channel: 3 resistance & 1 current channel | ||||
| Temperature Channel: 2 Channel | ||||
| Temperature Range: 0 – 100 °C | ||||
| Display: LCD | ||||
| Indication: LED & veep during test on, & discharge | ||||
| PC Interface: USB | ||||
| Internal memory: 2000 test readings | ||||
| Dimensions: 368 mm(L) X 283 mm(W) X 188 mm(H) | ||||
| Printer: Inbuilt thermal printer | ||||
| Safety & Standards | ||||
| Ingress Protection: IP 54 | ||||
| CE Certification | ||||
| Safety: Compliant with IEC 61010-1 | ||||
| EMC: Compliant with IEC 61326-1 | ||||
| Environmental | ||||
| Conditions Operating Temperature: 0°C to 55°C | ||||
| Storage Temperature: -10°C to 60°C | ||||
| Humidity: 95% RH, Non condensing | ||||
| Physical Specifications | ||||
| Dimensions (L×W×D) mm: 525 x 437 x 213 | ||||
| Weight: 15 kg | ||||
Related Products

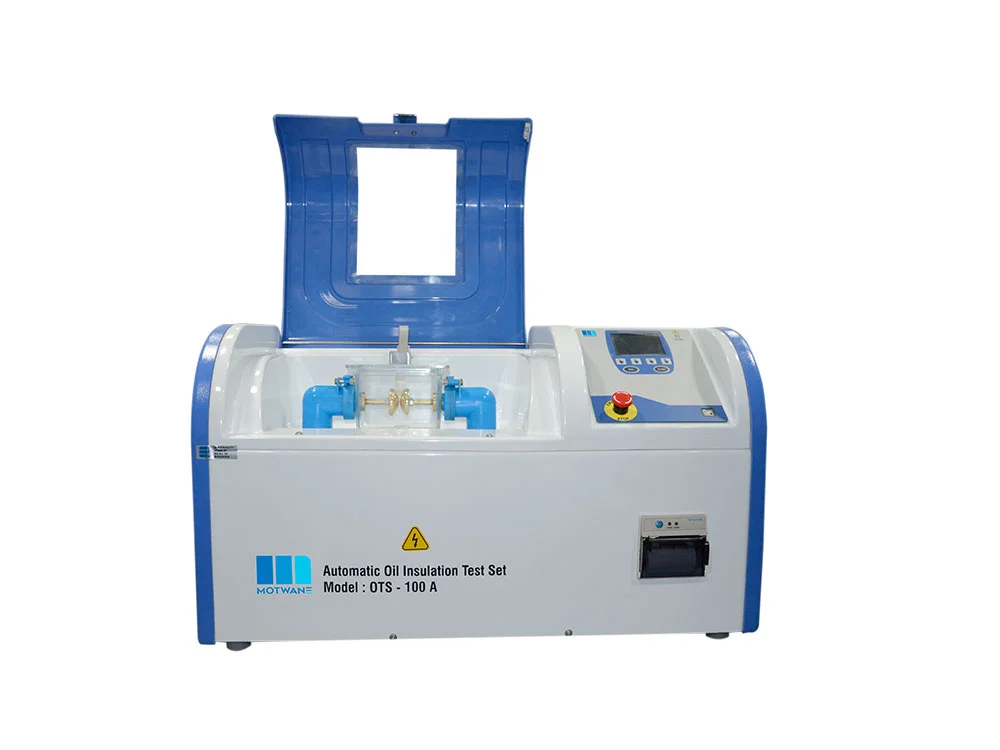

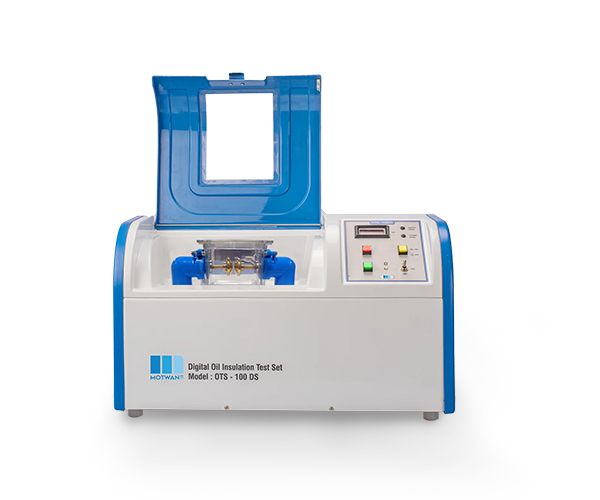

The Motwane OTS Series is a robust and high-performance system crafted to assess the dielectric strength of insulating oils used in essential electrical equipment like transformers, capacitors, switchgear, and instrument transformers. By regularly testing with the OTS Series, you can ensure these vital components operate safely and reliably.
The Motwane OTS Series is your go-to solution for reliably testing the dielectric strength of insulating oils found in crucial electrical equipment like transformers, capacitors, switchgear, and instrument transformers.
These tests are essential for ensuring that power systems operate safely and are well-maintained.

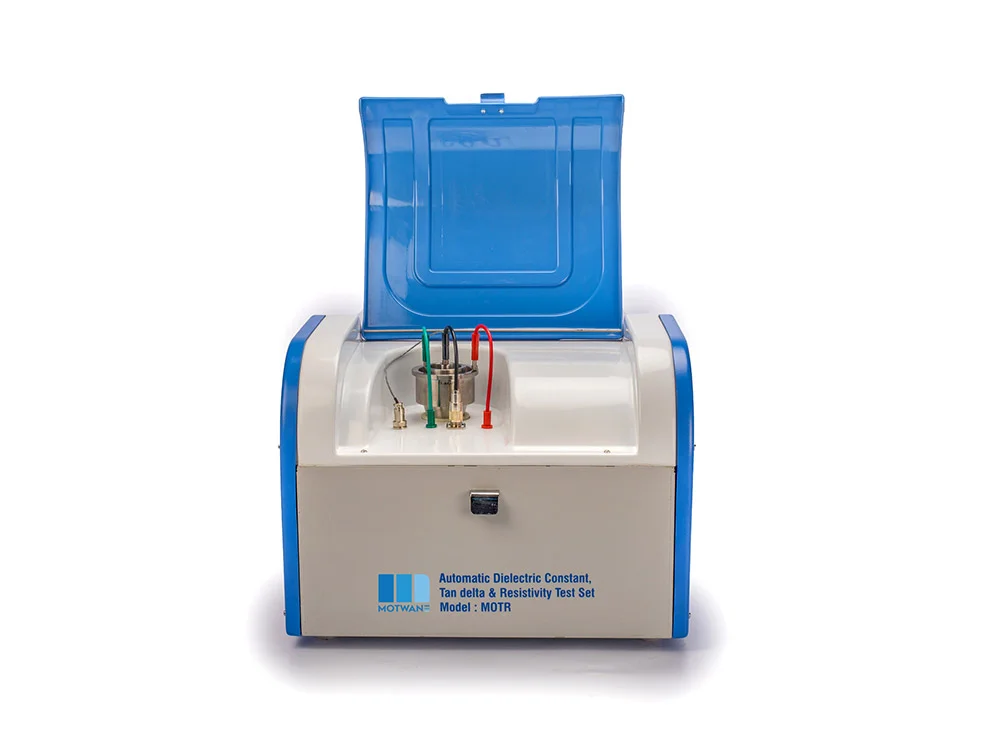

The Motwane MOTR is a compact, microprocessor-based device engineered for precise measurement of dissipation factor (tan δ) and volume resistivity in insulating oils. Compliant with IEC 60247 standards, it features a dual-temperature test cell (27°C and 90°C) and a built-in calibrator for performance verification. The MOTR streamlines oil diagnostics with automated oil drainage, customizable test sequences, onboard data storage and printing, and seamless connectivity via USB and Bluetooth. Integrated with the MOT-WARE cloud platform, it enables real-time data analysis, report customization, and AI-driven insights for predictive maintenance, offering a comprehensive solution for oil testing and asset management.

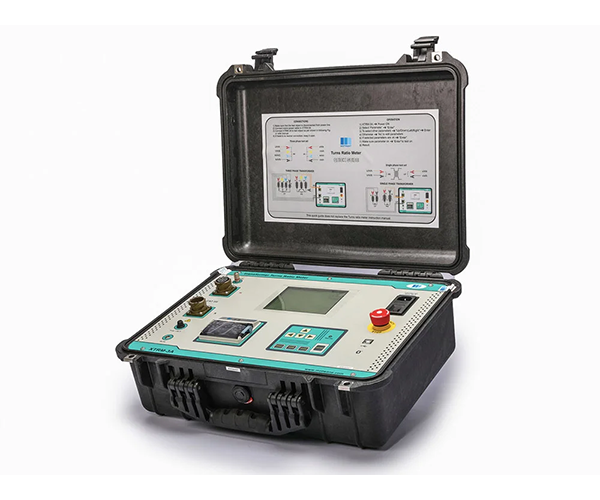

The Motwane XTRM-3 is a cutting-edge, fully automated testing system that provides accurate and efficient analysis of transformer parameters. Thanks to its advanced technology and smart features, it has become an essential tool for professionals involved in power transformer testing and diagnostics.
