Surge Wave Receiver

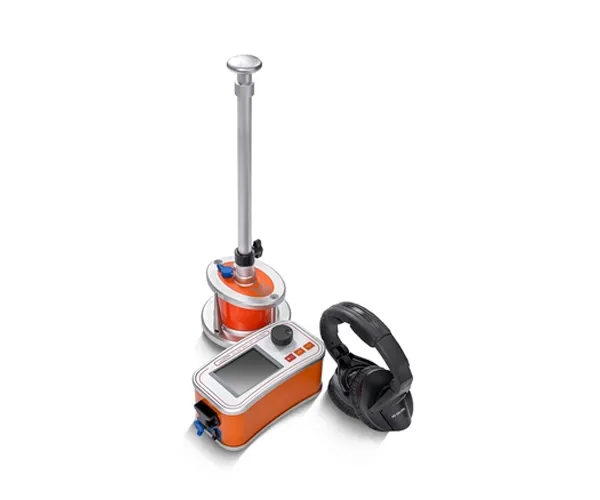

The SLE200-Z Surge Wave Receiver is a top-notch, highly sensitive device that makes pinpointing underground cable faults a breeze. It’s perfect for low, medium, and high-voltage power networks, providing reliable performance for both transmission and distribution systems.
Due to its acoustic and magnetic synchronization method, this receiver helps operators walk right along the cable route, quickly identifying fault points with impressive accuracy. With a large LCD display, noise suppression technology, and automatic mode switching, it’s designed to be user-friendly, even in the toughest environments.
- Perfect functions, suitable for pin-pointing all kinds of cable faults and detect cable path.
- Synchronous sensing of acoustic and magnetic signals of the fault with high ability to anti-interference.
- Waveforms displayed on large LCD.
- With the assistance of the earphone, direct and easy to identify the fault.
- High Performance electronic suppression of external noise and interference.
- Automatic contactless turn off of the Headset, as the hand approaches the handle Indication of the direction to the fault compass.
- Low batt indication.
- Indication of the acoustic signal detection.
- Fault distances measurement.
- Acoustic limitation 84dB.
- cable route identification.
- Indication of cable position in respect to the sensor.
- Time delay measurement of acoustic & magnetic signal.
- Automatic switch between different work modes.
- Auto control magnetic and acoustic gain.
Technical Specifications
| Technical Specifications | |
| Acoustic Magnetic Synchronous Pin-pointing Acoustic channel | |
| Bandwidth | All-pass 80Hz – 1500Hz |
| Bandwidth | Low-pass 80Hz – 400Hz |
| Bandwidth | High-pass 200Hz – 1500Hz |
| Bandwidth | Band-pass 150Hz – 600Hz |
| Signal Gain | => 100db |
| Accuracy | 0.5m |
| Compass | Yes |
| Indication of Acoustic Signal Detection | Yes |
| Power Supply Battery | Built-in Li-ion battery 7.4V- 3400mAh |
| Working Time | 10 Hours |
| Charger | Input AC220V ± 10%, 50Hz |
| Quick Charging | 4 hours |
| Display Method | 320 x 240 dot LCD Screen |
| IP Protection | Sensor – IP 54, Receiver – IP 65 |
| Dimensions | 210mm x 95mm x 115mm |
| Weight/td> | 0.6 Kg |
