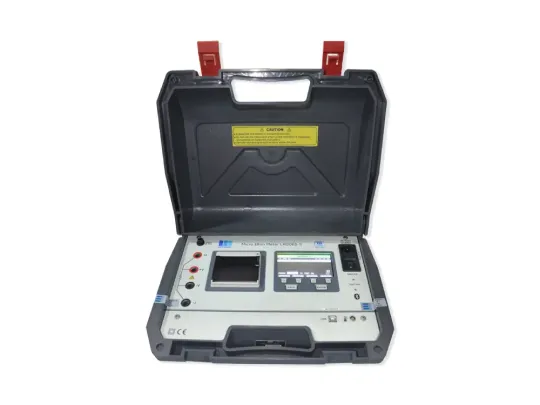

LR2065-S

Micro Ohm Meter

The Motwane LR2065-S is a Digital Micro-Ohmmeter crafted for the precise measurement of incredibly low resistances, with the ability to detect values as tiny as 0.1 μΩ.

It boasts a maximum DC current injection of 10A, ensuring that it delivers accurate and dependable performance across a variety of testing scenarios.

  • 4.3” Color TFT display with backlit
  • Resolution 0.1 μΩ on 2 mΩ range
  • Best Measurement Accuracy of +0.03 %
  • Mains cum Battery operated.
  • High measurement current (10A) for faster settling of measured values on low resistance.
  • True 4 wire resistance measuring technique
  • Pulse Mode, Auto Hold Operation.
  • Bluetooth interface and cloud connectivity through MOT WARE App
  • Inbuilt thermal paper printer
  • Low Battery indication to prevent deep discharge of internal recharging battery.
  • Temperature Measurement & Correction

Technical Specifications

Technical Specifications
Electrical Specification
At 25◦C ± 3◦C 55 % RH ± 10% Temp. Co : 150ppm/◦C
Range Max Reading Resolution Max Current Accuracy ±(%rdg + Digits)
2 mΩ 1.9999mΩ 0.1μΩ 10A ± 0.03 % of reading ± 4 digits
20 mΩ 19.999mΩ 1μΩ 1:00 AM ± 0.03 % of reading ± 4 digits
200 mΩ 199.99mΩ 10μΩ 100mA ± 0.03 % of reading ± 4 digits
2Ω 1.9999Ω 100μΩ 10mA ± 0.03 % of reading ± 4 digits
20 Ω 19.999Ω 1mΩ 100mA ± 0.03 % of reading ± 4 digits
200 Ω 199.99Ω 10mΩ 10mA ± 0.03 % of reading ± 4 digits
2000 Ω 1999.9Ω 100mΩ 1mA ± 0.03 % of reading ± 4 digits
20 kΩ 19999Ω 1Ω 100μA ± 0.03 % of reading ± 4 digits
Note:
Stated accuracies are valid from 10% of the range to 95% of the range.
Accuracy specified for temperature range of 25 °C ± 5 °C & 55% RH ± 10%.
General Specification
Printer: Built in Thermal Printer
PC Interface: Built in Thermal Printer
Report Storage: 1000 Reports
Temperature correction: Manual entry or Temperature Probe
Temperature Channel: 1
Dimensions: 368 mm(L) X 283 mm(W) X 188 mm(H)
Net Weight: 6.0Kg Approx.
Environmental
Operating Temperature: 0 °C to 55 °C
Storage Temperature: -10 °C to 60 °C
Relative Humidity: 95% RH at 40 °C max. (Non Condensing)
Power
Mains Power Supply: Mains Input Voltage 110/230 Volt AC, 50/60Hz
Storage Temperature: -10 °C to 60 °C
Battery Power Supply: Li-Ion Battery 14.8 V

Similar Products

FAQs

A: The LR2065S can inject up to 10A DC test current, enabling faster settling of measured values especially in low-resistance applications.

Motwane’s solutions can be used to monitor a wide variety of assets across industries, including machinery, electrical equipment, HVAC systems, pumps, and motors. If you have critical equipment, our platform can help you monitor and predict its behavior.

A: It operates on mains power (110/230V AC) and includes a rechargeable 14.8V Li-Ion battery, making it suitable for both lab and field use.

A: It meets EN 61010-1 for safety and EN 61326-1 for EMC compliance. It is rated for CAT II (1000V) and CAT III (600V) environments with reinforced insulation.
